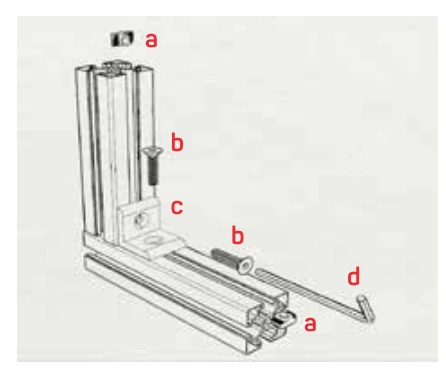

1. Step
Nuts are installed in grooves. L joint Positioned on the sigma connection area.
COMPLETE YOUR SYSTEM
L Joint
It can be used in applications that require lighter strength. Panel, frame and simple chassis applications are some of its usage areas. Its application is simple, 90º corner joints can be easily achieved by preventing the profile from turning.
Corner Joints8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.

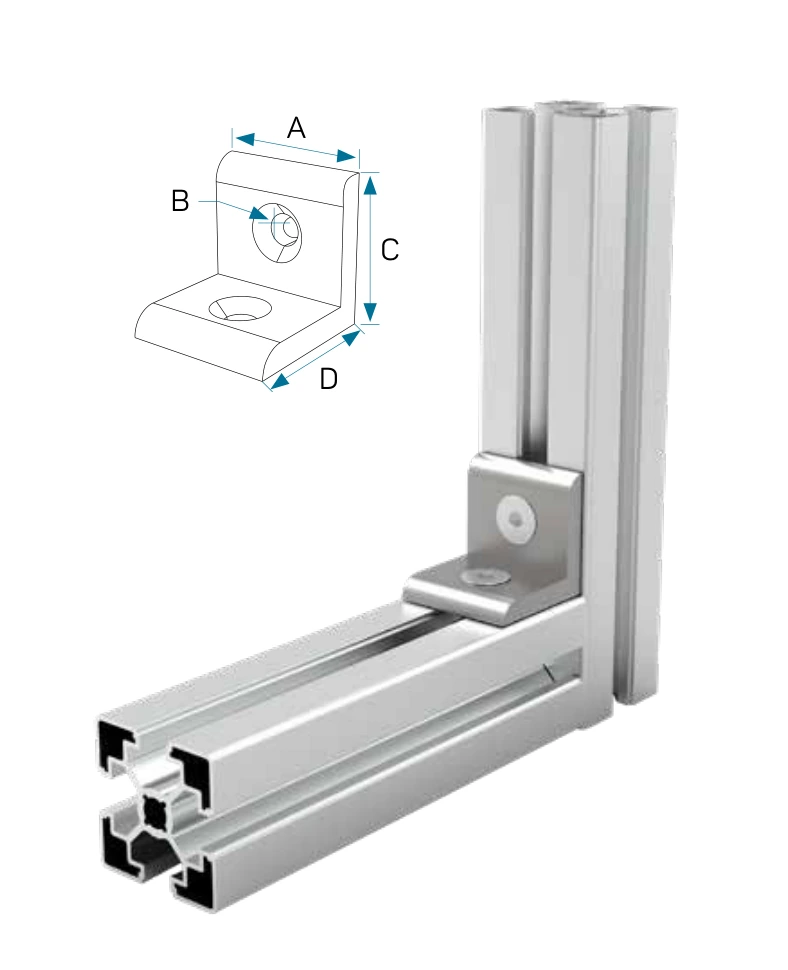

| Product code | Product / size | A | B | C | D | Add to quote |
|---|---|---|---|---|---|---|
| AS00327-001800-004 | 30X30 L Joint | 28 | M6 | 39 | 39 | |
| AS00327-001800-005 | 45X45 L Joint | 42 | M8 | 39 | 39 |
ASSEMBLY
Assembly, step by step.
2. Step
Bolts are tightered to the nuts.

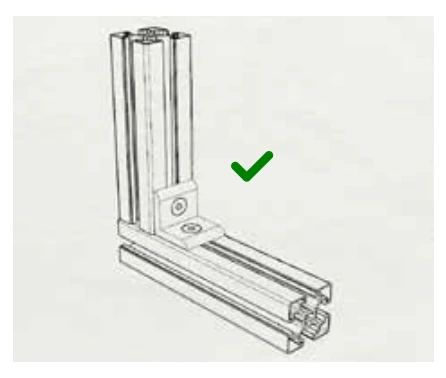

3. Step
Ready for use.
