1. Step
Nuts are placed in grooves. The multi direction connector plate is positioned on the sigma joining area.
COMPLETE YOUR SYSTEM
2/3/4 Ways Clamping Plates

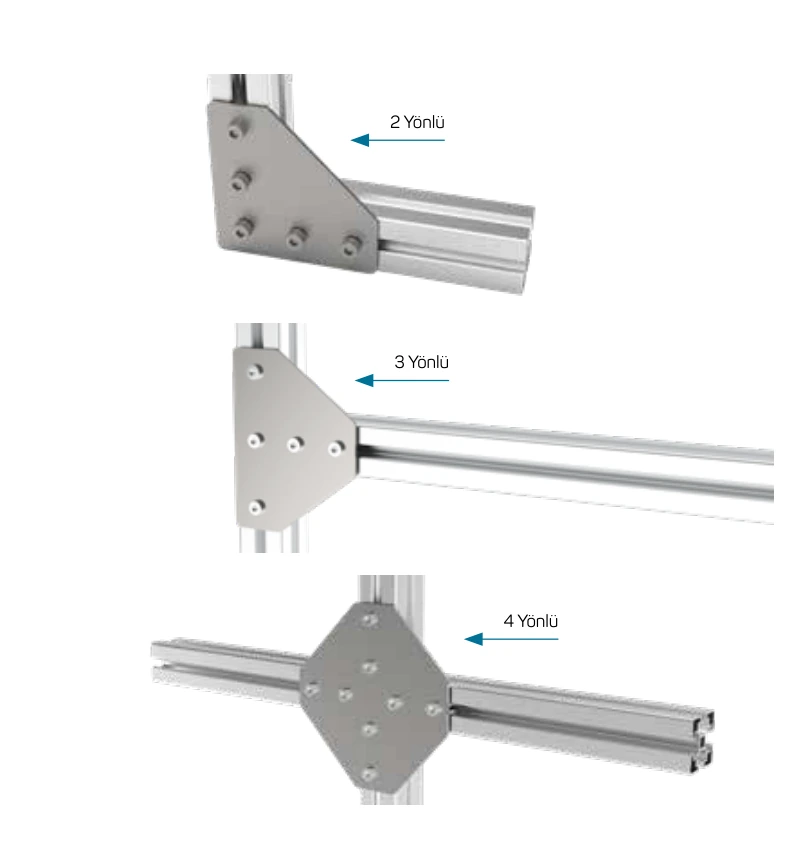

It can be used on machine feet by connecting more than one profile thanks to the sheet connection apparatus. Its application is very simple, bolt assembly can be completed without any action on the profiles. 2 profiles, 3 profiles, 4 profiles can be securely connected to each other with clamping plates.
Connection Hardware8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | Add to quote |
|---|---|---|
| AS00317-003421-001 | Clamping Plate 2 Way (30 Series) | |
| AS00317-003421-002 | Clamping Plate 3 Way (30 Series) | |
| AS00317-003421-003 | Clamping Plate 4 Way (30 Series) | |
| AS00317-003422-001 | Clamping Plate 3 Way (45 Series) | |
| AS00317-003422-002 | Clamping Plate 4 Way (45 Series) | |
| AS00317-003422-003 | Clamping Plate 2 Way (45 Series) |
ASSEMBLY
Assembly, step by step.
2. Step

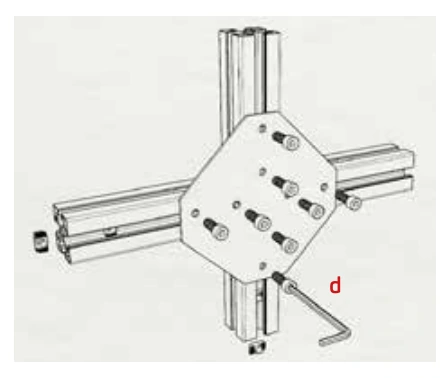

Bolts are tightened to the nuts.
3. Step

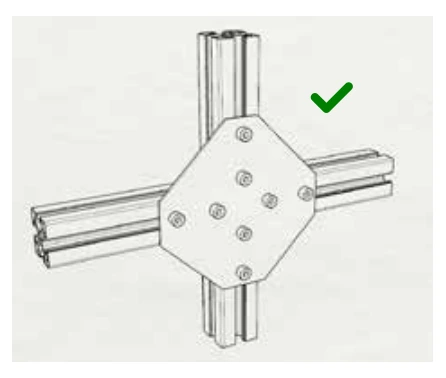

Ready for use.
