1. Step
The profile is got threaded.
COMPLETE YOUR SYSTEM

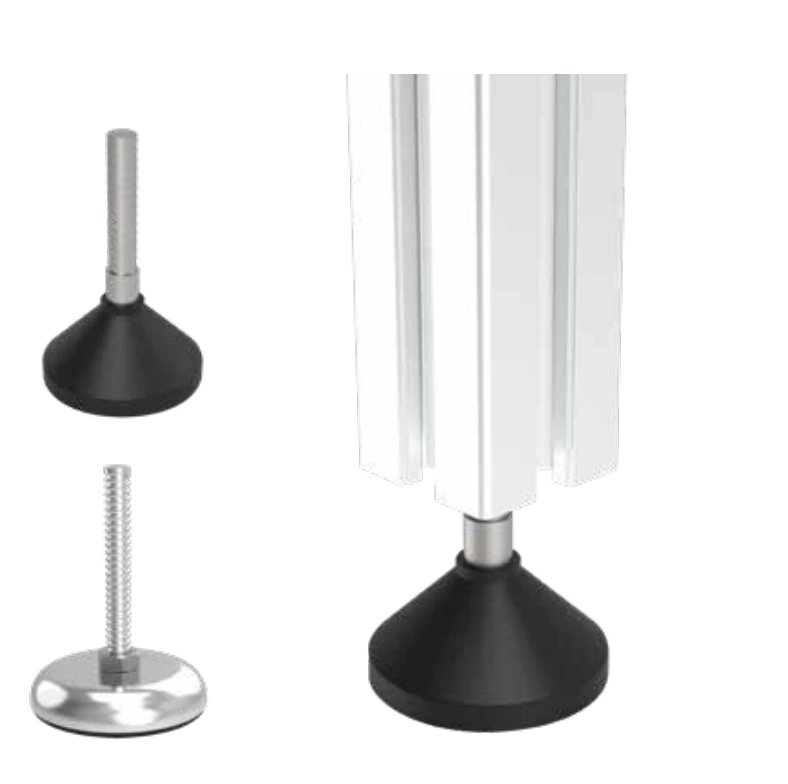

Articulated Foot
It allows the construction to be leveled. The height may be adjusted as desired. Some areas of usage are chassis plank and conveyor’s feet.
Feet / Casters8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | Add to quote |
|---|---|---|
| AS00318-004000-002 | Chrome Foot Diameter 40 M10*50 | |
| AS00318-000800-003 | Articulated Foot Diameter 50 M8*45 | |
| AS00318-000800-002 | Articulated Foot Diameter 50 M10*50 | |
| AS00318-000800-001 | Articulated Foot Diameter 50 M12*50 | |
| AS00318-004000-001 | Chrome Foot Diameter 60 M10*50 | |
| AS00318-004000-003 | Chrome Foot Diameter 80 M12*70 | |
| AS00318-000800-004 | Articulated Foot Diameter 80 M16*60 | |
| AS00318-004000-004 | Chrome Foot Diameter 120 M12*90 |
ASSEMBLY
Assembly, step by step.
2. Step

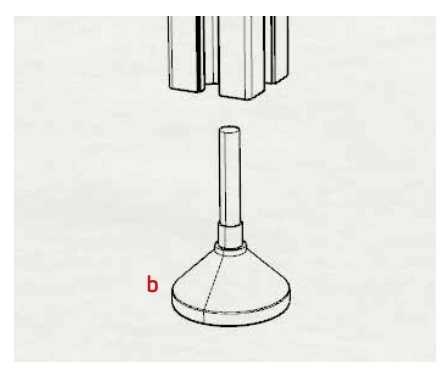

The articulated foot is tightened by turning the profile.
3. Step

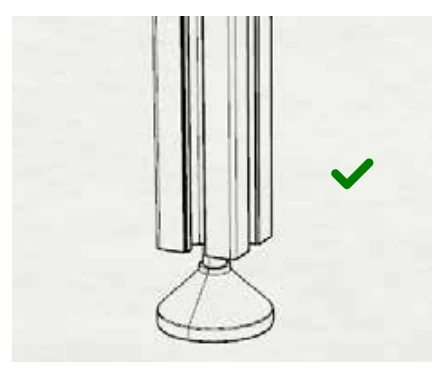

Ready for use.
