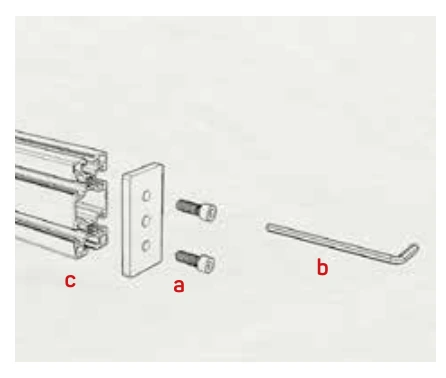

1. Step
The profile is got threaded.
COMPLETE YOUR SYSTEMSelect your size ↓

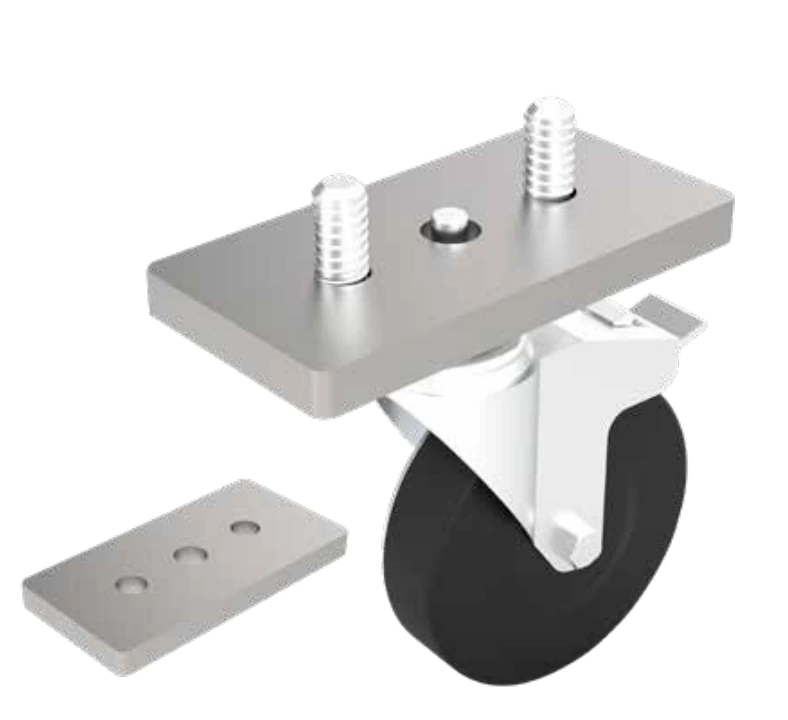

Foot Clamping Flange
It allows to install the foot on adaptors fixed on internal holes and section point. The articulated foot and wheels can be installed on construction securely.
PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | Add to quote |
|---|---|---|
| AS00318-003900-009 | 30*60 Foot Clamping Flange M8 | |
| AS00318-003900-004 | 40x80 Foot Clamping Flange M10 | |
| AS00318-003900-001 | 45x90 Foot Clamping Flange M10 | |
| AS00318-003900-003 | 45x90 Foot Clamping Flange M12 | |
| AS00318-003900-006 | 45x90 Foot Clamping Flange M16 | |
| AS00318-003900-010 | 60x60 Foot Clamping Flange M10 | |
| AS00318-003900-005 | 80x80 Foot Clamping Flange M12 | |
| AS00318-003900-007 | 80x80 Foot Clamping Flange M16 | |
| AS00318-003900-002 | 90x90 Foot Clamping Flange M12 | |
| AS00318-003900-008 | 90x90 Foot Clamping Flange M16 |
ASSEMBLY
Assembly, step by step.
2. Step
Feet clamping flange tightened by bolts.

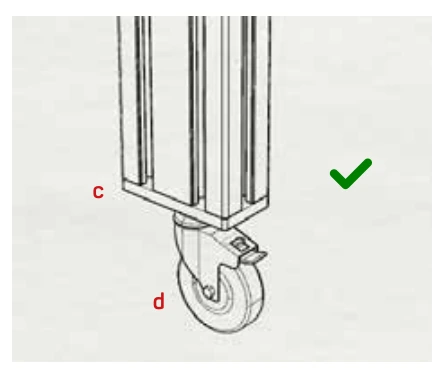

3. Step
Ready for use.
