1. Step
Spring nut is rolled or slided into the groove of the profile.
COMPLETE YOUR SYSTEM
Spring Nut
They have been specially developed for Sigma profiles. It can be inserted in to the groove and slide along before or after machining.
Nuts6 / 8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.

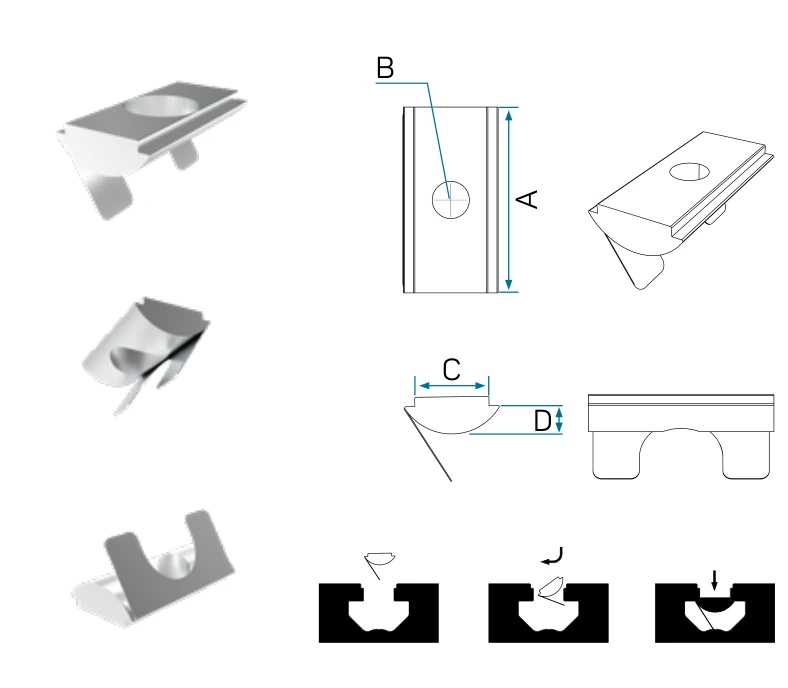

| Product code | Product / size | A | B | C | D | Add to quote |
|---|---|---|---|---|---|---|
| AS00328-002717-003 | Spring Nut M4 8K | 20 | M4 | 12 | 5,5 | |
| AS00328-002717-004 | Spring Nut M5 8K | 20 | M5 | 12 | 5,5 | |
| AS00328-002717-002 | Spring Nut M6 8K | 20 | M6 | 12 | 5,5 | |
| AS00328-002717-001 | Spring Nut M8 8K | 20 | M8 | 12 | 5,5 | |
| AS00328-002511-005 | Spring Nut 40/M5 10K | 20 | M5 | 14 | 5,3 | |
| AS00328-002511-006 | Spring Nut 40/M6 10K | 20 | M6 | 14 | 5,3 | |
| AS00328-002511-007 | Spring Nut 40/M8 10K | 20 | M8 | 14 | 5,3 | |
| AS00328-002611-004 | Spring Nut 45/M4 10K | 20 | M4 | 15 | 7,5 | |
| AS00328-002611-002 | Spring Nut 45/M5 10K | 20 | M5 | 15 | 7,5 | |
| AS00328-002611-003 | Spring Nut 45/M6 10K | 20 | M6 | 15 | 7,5 | |
| AS00328-002611-001 | Spring Nut 45/M8 10K | 20 | M8 | 15 | 7,5 |
ASSEMBLY
Assembly, step by step.
2. Step
Spring nut is positioned properly.
3. Step
Ready for use.
