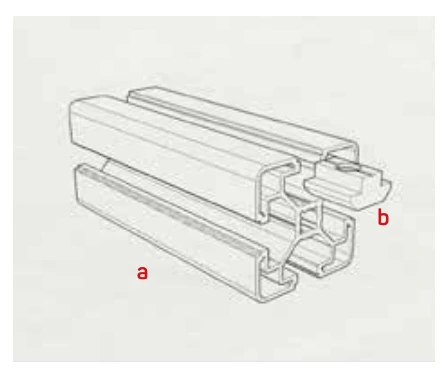

1. Step
T nut is slided into the profile from the groove.
COMPLETE YOUR SYSTEM
T-nut
T nuts are used where strong joinings are required. It provides the strong connection by fitting the surface and rest perfectly.
Nuts6 / 8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | A | B | C | D | Add to quote |
|---|---|---|---|---|---|---|
| AS00328-002410-001 | T-nut M4 6K | 10 | M4 | 5 | 6 | |
| AS00328-002410-002 | T-nut M5 6K | 10 | M5 | 5 | 6 | |
| AS00328-002510-001 | T-nut M4 8K | 16 | M4 | 6 | 8 | |
| AS00328-002510-002 | T-nut M5 8K | 16 | M5 | 6 | 8 | |
| AS00328-002510-003 | T-nut M6 8K | 16 | M6 | 6 | 8 | |
| AS00328-002510-004 | T-nut M8 8K | 16 | M8 | 6 | 8 | |
| AS00328-002610-001 | T-nut M5 10K | 19,5 | M5 | 10 | 10 | |
| AS00328-002610-002 | T-nut M4 10K | 19,5 | M4 | 10 | 10 | |
| AS00328-002610-003 | T-nut M6 10K | 19,5 | M6 | 10 | 10 | |
| AS00328-002610-004 | T-nut M8 10K | 19,5 | M8 | 10 | 10 |
ASSEMBLY
Assembly, step by step.

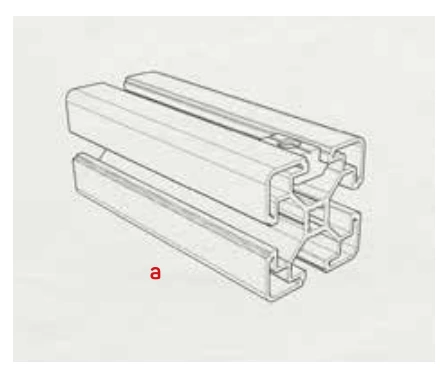

2. Step
T nut is positioned properly.
3. Step
Ready for use.
