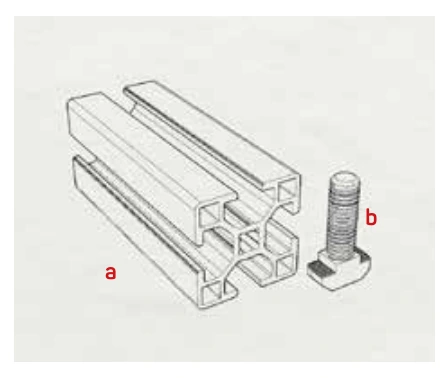

1. Step
Hammer bolt is rolled or slided into the groove of the profile.
COMPLETE YOUR SYSTEM
Hammer Bolt
It can be added to the groove after the assembly is completed. In this way, additional parts can be added. The notches on the nut create a stronger structure by pressing into the profile during tightening. Studs of varying length are preferred according to the height of the connection piece.
Nuts8 / 10 mm
Select your size ↓PRODUCT SELECTION

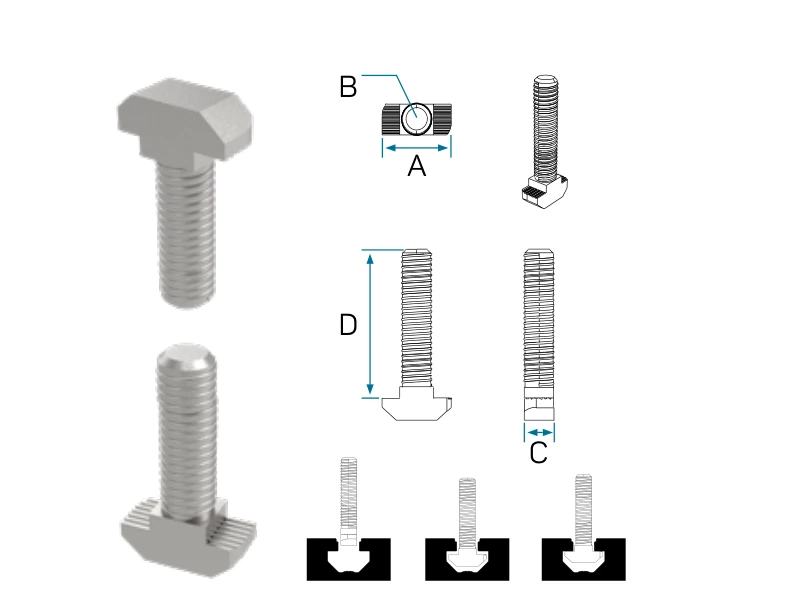

Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | A | B | C | D | Add to quote |
|---|---|---|---|---|---|---|
| AS00328-002513-003 | Hammer Bolt M6*20 8K | 16 | M6 | 7,9 | 20 | |
| AS00328-002513-006 | Hammer Bolt M8*20 8K | 16 | M8 | 7,9 | 20 | |
| AS00328-002513-001 | Hammer Bolt M6*25 8K | 16 | M6 | 7,9 | 25 | |
| AS00328-002513-002 | Hammer Bolt M8*25 8K | 16 | M8 | 7,9 | 25 | |
| AS00328-002513-004 | Hammer Bolt M6*30 8K | 16 | M6 | 7,9 | 30 | |
| AS00328-002513-007 | Hammer Bolt M8*30 8K | 16 | M8 | 7,9 | 30 | |
| AS00328-002513-007 | Hammer Bolt M6*40 8K | 16 | M6 | 7,9 | 40 | |
| AS00328-002613-003 | Hammer Bolt M6*20 10K | 19 | M6 | 9,9 | 20 | |
| AS00328-002613-002 | Hammer Bolt M8*20 10K | 19 | M8 | 9,9 | 20 | |
| AS00328-002613-004 | Hammer Bolt M6*25 10K | 19 | M6 | 9,9 | 25 | |
| AS00328-002613-001 | Hammer Bolt M8*25 10K | 19 | M8 | 9,9 | 25 | |
| AS00328-002613-005 | Hammer Bolt M6*30 10K | 19 | M6 | 9,9 | 30 | |
| AS00328-002613-007 | Hammer Bolt M8*30 10K | 19 | M8 | 9,9 | 30 | |
| AS00328-002613-006 | Hammer Bolt M6*40 10K | 19 | M6 | 9,9 | 40 |
ASSEMBLY
Assembly, step by step.

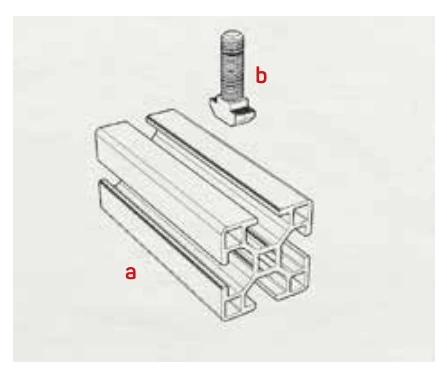

2. Step
The hammer bolt is tightened with a washer and nut.

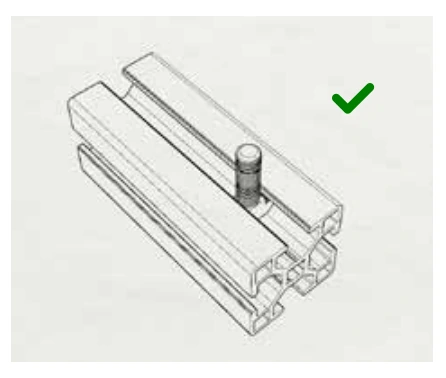

3. Step
Ready for use.
