1. Step
Linear joint is slided into profile from groove.
COMPLETE YOUR SYSTEM
Linear Joint

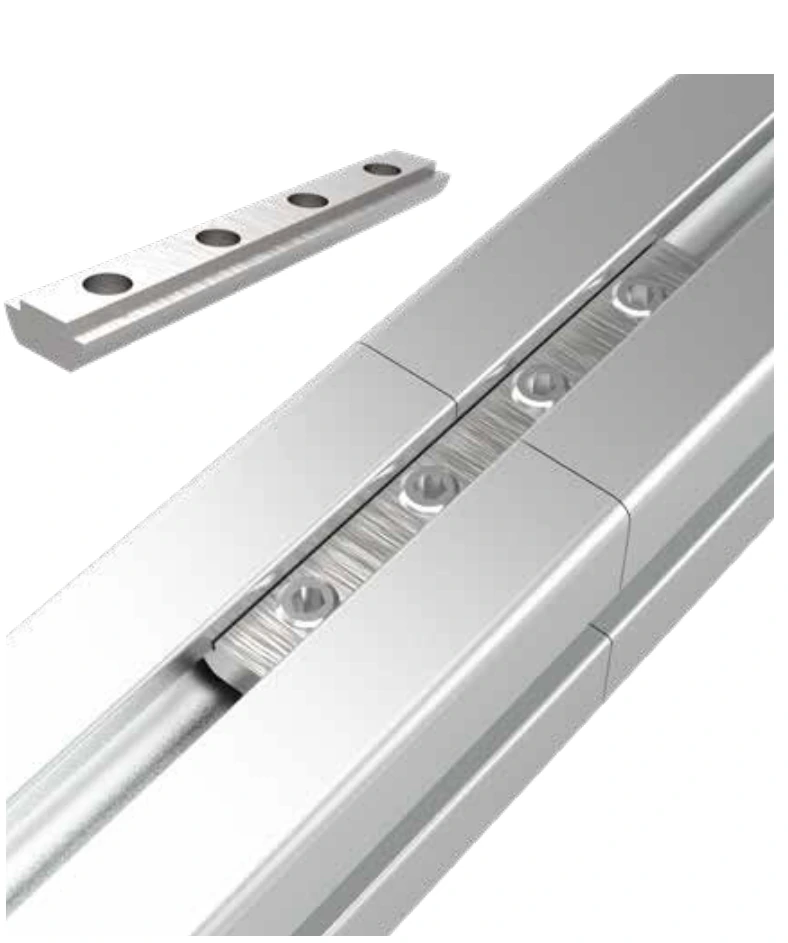

This apparatus, which is applied with setscrews to the grooves of two profiles to be attached to the link, provides an ideal connection in cases where the length of the profiles is not enough and in conveyor structures.
Connection Hardware8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | Add to quote |
|---|---|---|
| AS00328-002514-001 | Linear Joint Nut 8K | |
| AS00328-002614-001 | Linear Joint Nut 10K | |
| AS00328-002714-001 | Linear Joint Nut 30*30 Special Series |
ASSEMBLY
Assembly, step by step.
2. Step
Linear joint is screwed onto profile by setscrew.
3. Step
Ready for use.
