1. Step
Glass or plexi is positioned on the profile groove..
COMPLETE YOUR SYSTEM
Rubber Panel Infill
It is a rubber gasket applied along the edges so that materials such as glass, wood, sheet metal and plate that can be used as lining material by being passed through profile grooves can sit tightly without gaps. It has two types. It can be used to clamp 4 mm and 1 mm material to 8 mm duct.
Caps / Strips8 / 10 mm
Select your size ↓PRODUCT SELECTION
Codes and dimensions
Dimensions are in mm. Add the right variant directly to your quote list.
| Product code | Product / size | Add to quote |
|---|---|---|
| AS00209-000000-001 | Rubber Panel Infill 8/4-10/6 | |
| AS00209-000000-002 | Rubber Panel Infill 10/4 | |
| AS00209-000308-001 | Rubber Panel Infill 10/4 |
ASSEMBLY
Assembly, step by step.

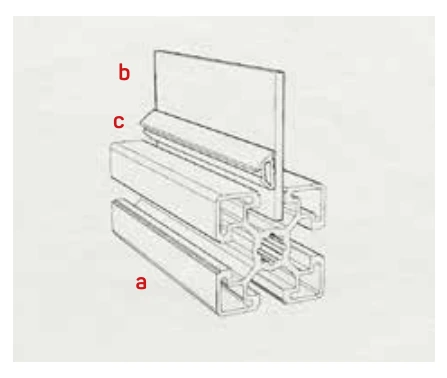

2. Step
The rubber panel infill is pushed from the top and the glass is fixed to the groove of profile.
3. Step
Ready for use.
