Profiles/20X20 R

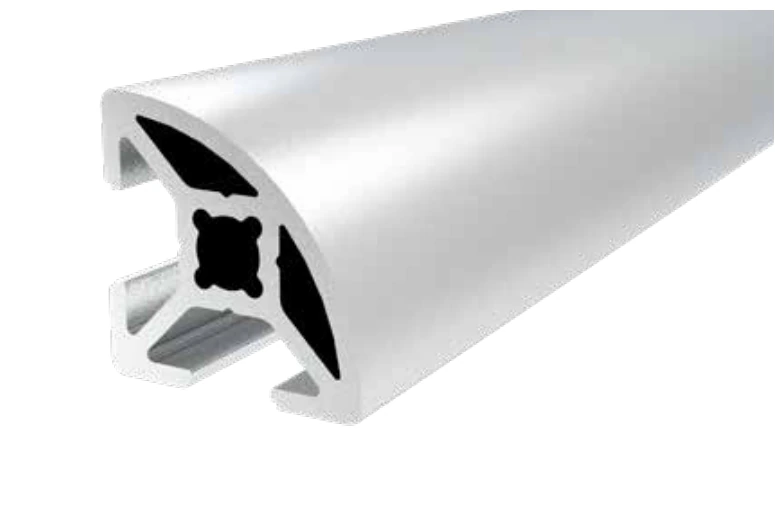

20X20 R Sigma Profile
ADASIGMA / 10847
6 MM GROOVE

20X20 RSigma profile

Product code: 10847

10847 sigma profile is preferred in stands, panels, cabinets and similar designs in order to provide an aesthetic appearance thanks to its radius appearance.

Radius Series

Set the required length in metres in your quote list.

SPECIFICATIONS

Engineered in detail.

Weight0.38 kg/m
Cross-section area140.17 mm²
Ix0.368 cm⁴
Iy0.646 cm⁴
Wx0.368 cm³
Wy0.646 cm³
Groove width6 mm

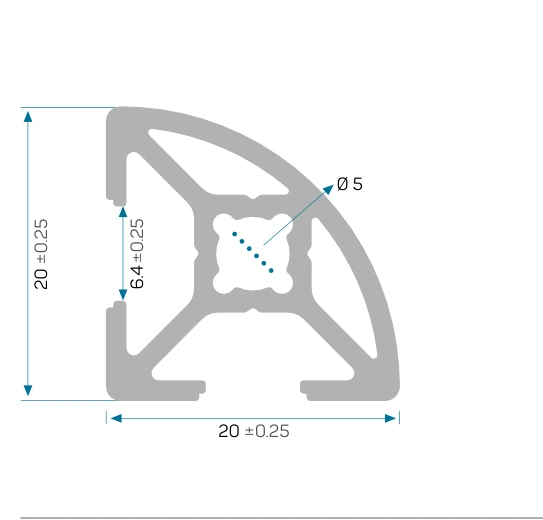

Dimensioned cross-section drawing
Cross-section and dimensional tolerances · mm

Dimensional tolerances

20 ±0.25
20 ±0.25
6.4±0.25
Ø 5

TS EN755-9 · See the dimensioned drawing for details.

Applications

10847 sigma profile is preferred in stands, panels, cabinets and similar designs in order to provide an aesthetic appearance thanks to its radius appearance.

CabinPanelStand
