8 MM GROOVE
40X80 ASigma profile
Product code: 20942094 sigma profile is preferred in the use of conveyors, machine chassis, working and assembly tables that require strength thanks to its strong cross-section structure.
Heavy Series
Set the required length in metres in your quote list.
SPECIFICATIONS
Engineered in detail.
| Weight | 3.079 kg/m |
|---|---|
| Cross-section area | 1136.27 mm² |
| Ix | 17.39 cm⁴ |
| Iy | 70.933 cm⁴ |
| Wx | 8.695 cm³ |
| Wy | 17.733 cm³ |
| Groove width | 8 mm |

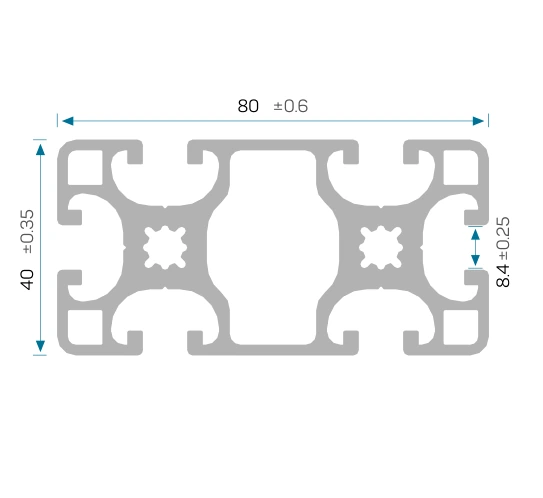

Dimensional tolerances
80 ±0.6
40 ±0.35
8.4±0.25
TS EN755-9 · See the dimensioned drawing for details.
Applications
2094 sigma profile is preferred in the use of conveyors, machine chassis, working and assembly tables that require strength thanks to its strong cross-section structure.
