10 MM GROOVE
90X90 SSigma profile
Product code: 61936193 sigma profile is preferred to be used as a carrier profile in medium machine chassis and constructions.
Standard Series
Set the required length in metres in your quote list.
SPECIFICATIONS
Engineered in detail.
| Weight | 5.694 kg/m |
|---|---|
| Cross-section area | 2101.22 mm² |
| Ix | 205.238 cm⁴ |
| Iy | 205.238 cm⁴ |
| Wx | 45.608 cm³ |
| Wy | 45.608 cm³ |
| Groove width | 10 mm |

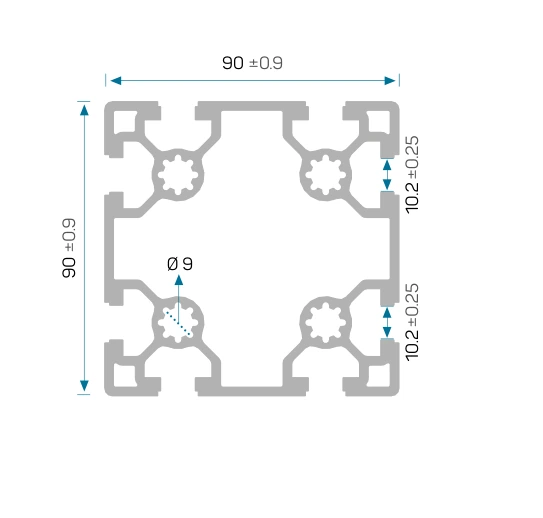

Dimensional tolerances
90 ±0.9
90 ±0.9
Ø 9
10.2±0.25 10.2±0.25
TS EN755-9 · See the dimensioned drawing for details.
Applications
6193 sigma profile is preferred to be used as a carrier profile in medium machine chassis and constructions.
