Profiles/40X80 H

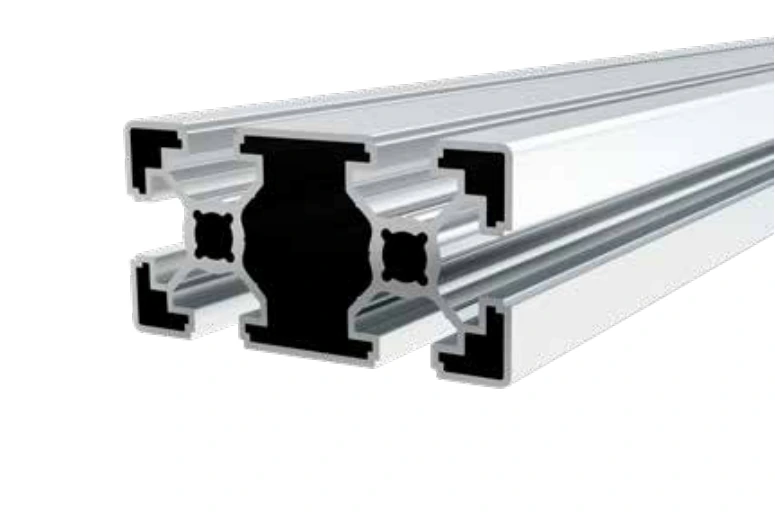

40X80 H Sigma Profile
ADASIGMA / 10736
10 MM GROOVE

40X80 HSigma profile

Product code: 10736

10736 sigma profile is preferred for the use of conveyor, working and assembly tables that do not require much strength.

Light Series

Set the required length in metres in your quote list.

SPECIFICATIONS

Engineered in detail.

Weight2.029 kg/m
Cross-section area748.66 mm²
Ix11.937 cm⁴
Iy48.844 cm⁴
Wx5.969 cm³
Wy12.211 cm³
Groove width10 mm
Dimensioned cross-section drawing
Cross-section and dimensional tolerances · mm

Dimensional tolerances

80 ±0.9
40 ±0.5
Ø 8,7
10.2±0.25

TS EN755-9 · See the dimensioned drawing for details.

Applications

10736 sigma profile is preferred for the use of conveyor, working and assembly tables that do not require much strength.

ConveyorTable
