7491
10 MM GROOVE

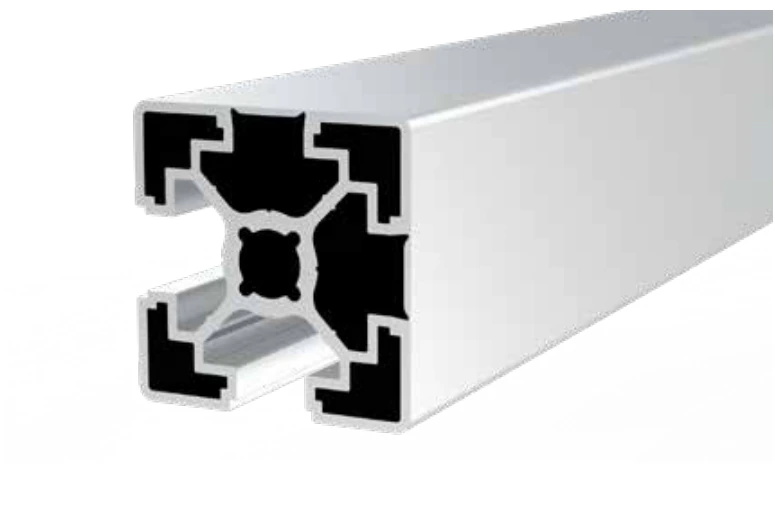

40X40 2KSigma profile
Product code: 1237212372 sigma profile is preferred in cabin applications, where a hygienic and aesthetic appearance is desired thanks to its tearable closed grooves.
2 Closed Grooves
Set the required length in metres in your quote list.
SPECIFICATIONS
Engineered in detail.
| Weight | 1.258 kg/m |
|---|---|
| Cross-section area | 464.36 mm² |
| Ix | 7.188 cm⁴ |
| Iy | 7.188 cm⁴ |
| Wx | 3.594 cm³ |
| Wy | 3.594 cm³ |
| Groove width | 10 mm |
Dimensional tolerances
40 ±0.5
40 ±0.5
Ø 9
10.2±0.25
TS EN755-9 · See the dimensioned drawing for details.
Applications
12372 sigma profile is preferred in cabin applications, where a hygienic and aesthetic appearance is desired thanks to its tearable closed grooves.
