10 MM GROOVE

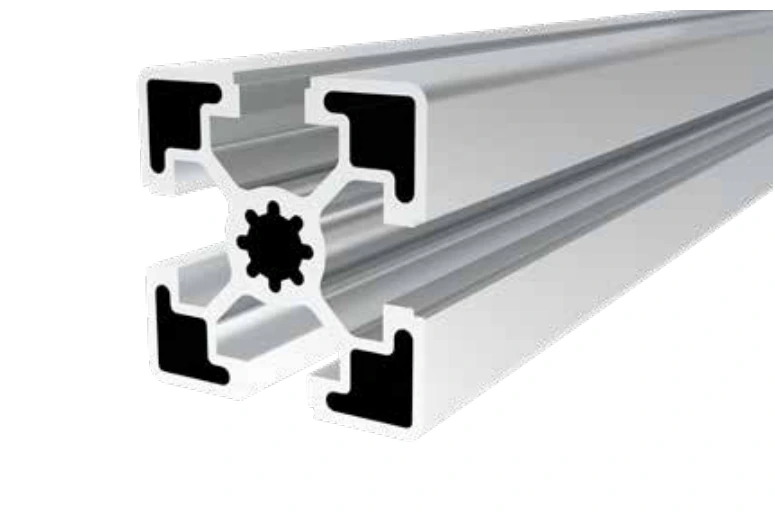

45X45 SSigma profile
Product code: 61906190 sigma profile is preferred to be used in the construction of machine chassis, cabins, assembly and test tables that require light strength.
Standard Series
Set the required length in metres in your quote list.
SPECIFICATIONS
Engineered in detail.
| Weight | 1.662 kg/m |
|---|---|
| Cross-section area | 613.31 mm² |
| Ix | 11.577 cm⁴ |
| Iy | 11.577 cm⁴ |
| Wx | 5.145 cm³ |
| Wy | 5.145 cm³ |
| Groove width | 10 mm |
Dimensional tolerances
45 ±0.5
45 ±0.5
Ø 9
10.2±0.25
TS EN755-9 · See the dimensioned drawing for details.
Applications
6190 sigma profile is preferred to be used in the construction of machine chassis, cabins, assembly and test tables that require light strength.
